All-road AR 1.1

The All-rounder

The reality for many of us is that we do the majority of our riding on tarmac. Our frames take the sting out of even the worst roads, and make all day riding an absolute joy.

Strong   Smooth    Fast    Beautiful

  • Hand built in Wales using carefully selected British Ash

  • Sleeved internal cable routing

  • Standard bottle mounts on seat tube and down tube

  • Optional mounts on top tube and BB

  • Optional mud guard and rack mounting points

  • 1x or 2x gear options

Features

  • Up to 35mm tyre clearance (700c)

  • 160/160mm rotors

  • 12mm x 142mm Syntace thru axle

  • Strength tested to BS EN ISO 4210-2:2015

  • Available as frameset only or complete build

  • Optional tinted lacquer finish (additional cost)

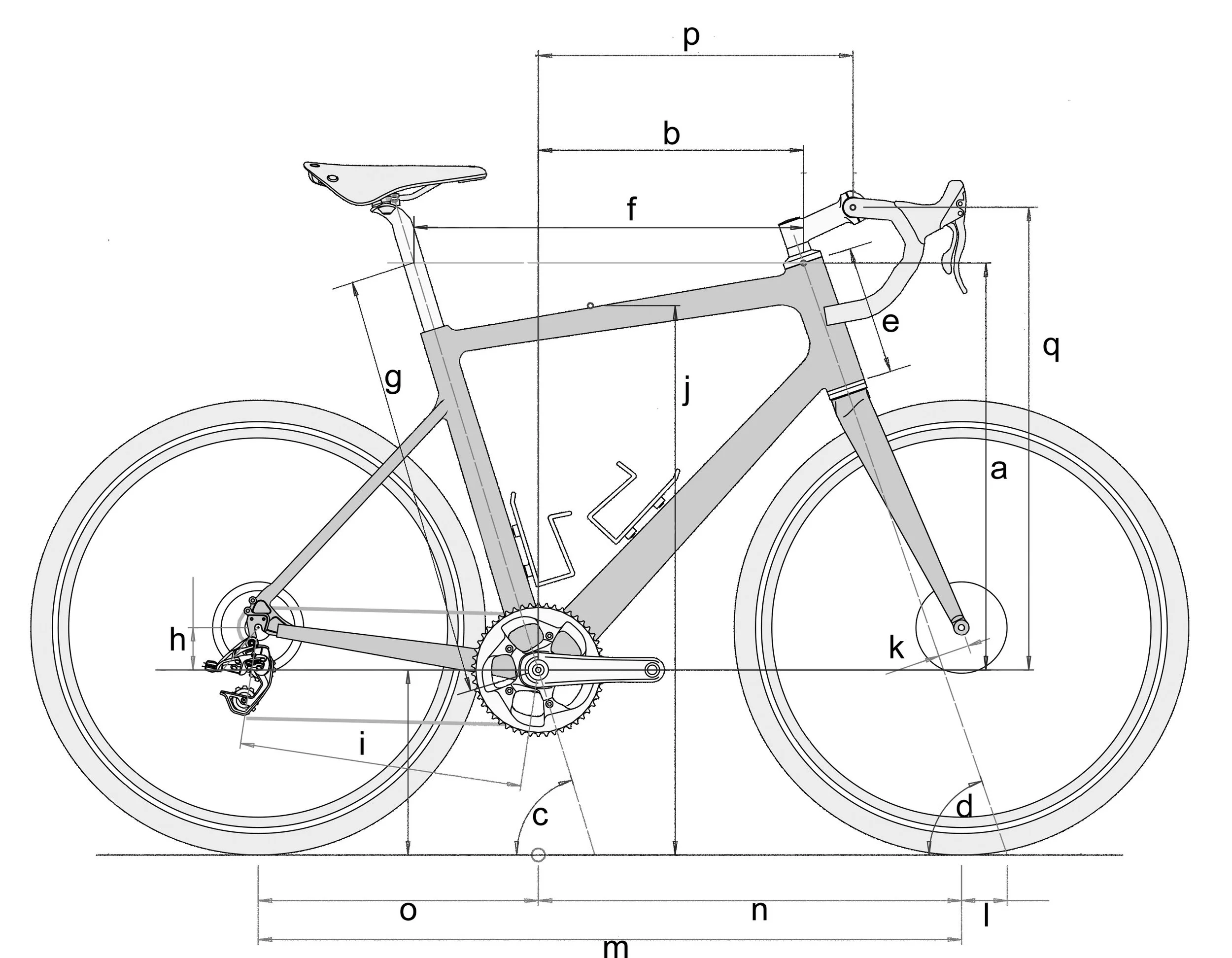

Geometry and sizing

Specifications

  • Rear Axle: 142 x 12mm

  • Front Axle: 100 x 12mm

  • Fork Offset: 47mm

  • Fork Height: 375mm

  • Fork Material: Carbon fibre

  • Max Tyre: 700 x 35c

  • Headset Top: ZS44/28.6

  • Headset Btm: EC44/40

  • BB: T47 85.5mm

  • Brake Mount: Flat Mount

  • Seat Tube: 31.6mm

  • Frame Weight: approx. 1700g (medium)

Suggested Build kits

Frameset

from £3,490

  • AR 1.1 Frameset

  • Enigma C-Six GRV/ADV Fork

  • Hope Headset (colour choices)

Campagnolo Ekar 1 x 13

A superb blend of comfort and speed that will handle everything you throw at it

  • Fork: Carbon with mud-guard mounts

  • Brake/Shift levers: Campagnolo Ekar

  • Calipers: Campagnolo Ekar

  • Derailleur: Campagnolo Ekar

  • Cassette: Campagnolo Ekar 13sp 9-42T

  • Crankset: Campagnolo Ekar + 40T Chainring

  • Wheelset: Campagnolo Shamal (Levante upgrade)

  • Tyres: Schwalbe G-One Allround 700c x 38mm

  • Headset: Hope

  • BB: Pro-Tech T47x86

  • Seatpost: Thomson Elite

  • Seatclamp: Hope

  • Stem: Thomson Elite X4

  • Handlebar: Thomson Dirt Drop

  • Saddle: Repente Artax GL

  • Bar Tape: Kinesis 4 Seasons

SRAM Force AXS 2 x 12

The convenience of electronic shifting with SRAM’s best value groupset makes for a refined touring setup.

  • Fork: Carbon with Anything mounts

  • Brake/Shift levers: SRAM Force AXS

  • Calipers: SRAM Force AXS

  • Rear Derailleur: SRAM Force AXS - Medium cage

  • Cassette: SRAM Force 12sp 10 -36 T

  • Crankset: SRAM Force AXS 43 - 30

  • Wheelset: DT Swiss CRC 1400 SPLINE

  • Tyres: Continental Grand Prix 4-Season 700x32c

  • Headset: Chris King Inset 7

  • BB: CeramicSpeed T47x86

  • Seatpost: Thomson Elite

  • Seatclamp: Hope

  • Stem: Thomson Elite X4

  • Handlebar: Ritchey WCS Carbon Venturemax Road

  • Saddle: Brooks Cambium C17

  • Bar Tape: Kinesis 4 Seasons

Custom

We understand that no two riders have exactly the same requirements or the same budget and so most of our builds are individually curated.

Builds have included:

  • Lauf Suspension fork

  • Custom steel fork

  • SON dynamo hub

  • SRAM AXS electronic shifting

  • Drivetrain from Ingrid Components
